Limited Time Offer

With purchase of a OBD+ Module, send in an old Rogue Tuning or F9T DME and receive a free upgrade to the latest SPORT DME for free!!!

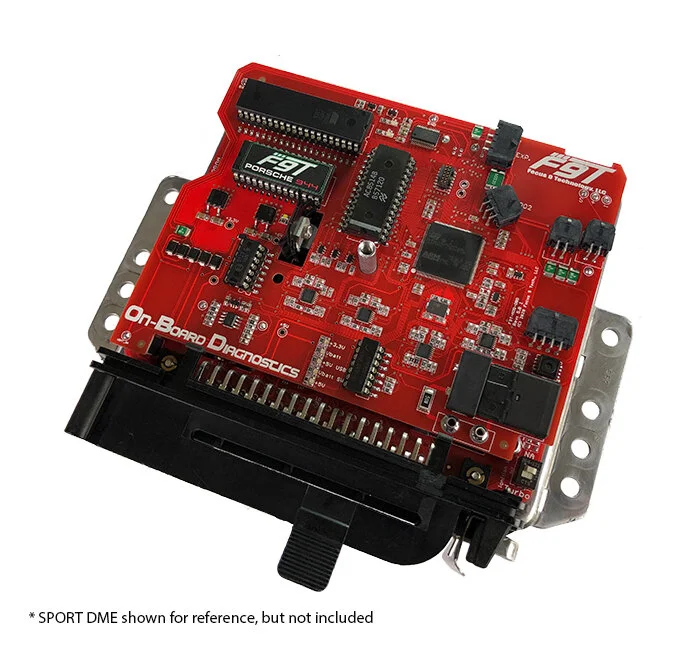

Add powerful On-Board Diagnostics (OBD) to your Porsche 944 or 944 Turbo! The OBD+ Module is an upgrade for the F9T SPORT DME to read out engine sensors and add additional capabilities. New features are added consistently via free software/firmware updates. Please follow this Rennlist thread for detailed information:

Rennlist OBD+ Upgrade Module Thread

FocusOBD Software

The OBD+ Module uses F9T’s free FocusOBD Application software. This software can be downloaded for evaluation purposes here:

http://www.ftech9.com/focusobd-software

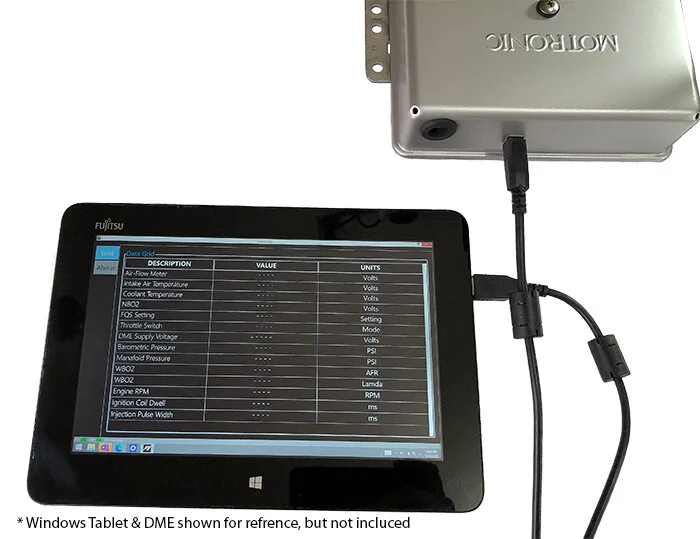

This software supports the Windows 7, 8, 10 and 11 operating systems with future support for iOS and Android.

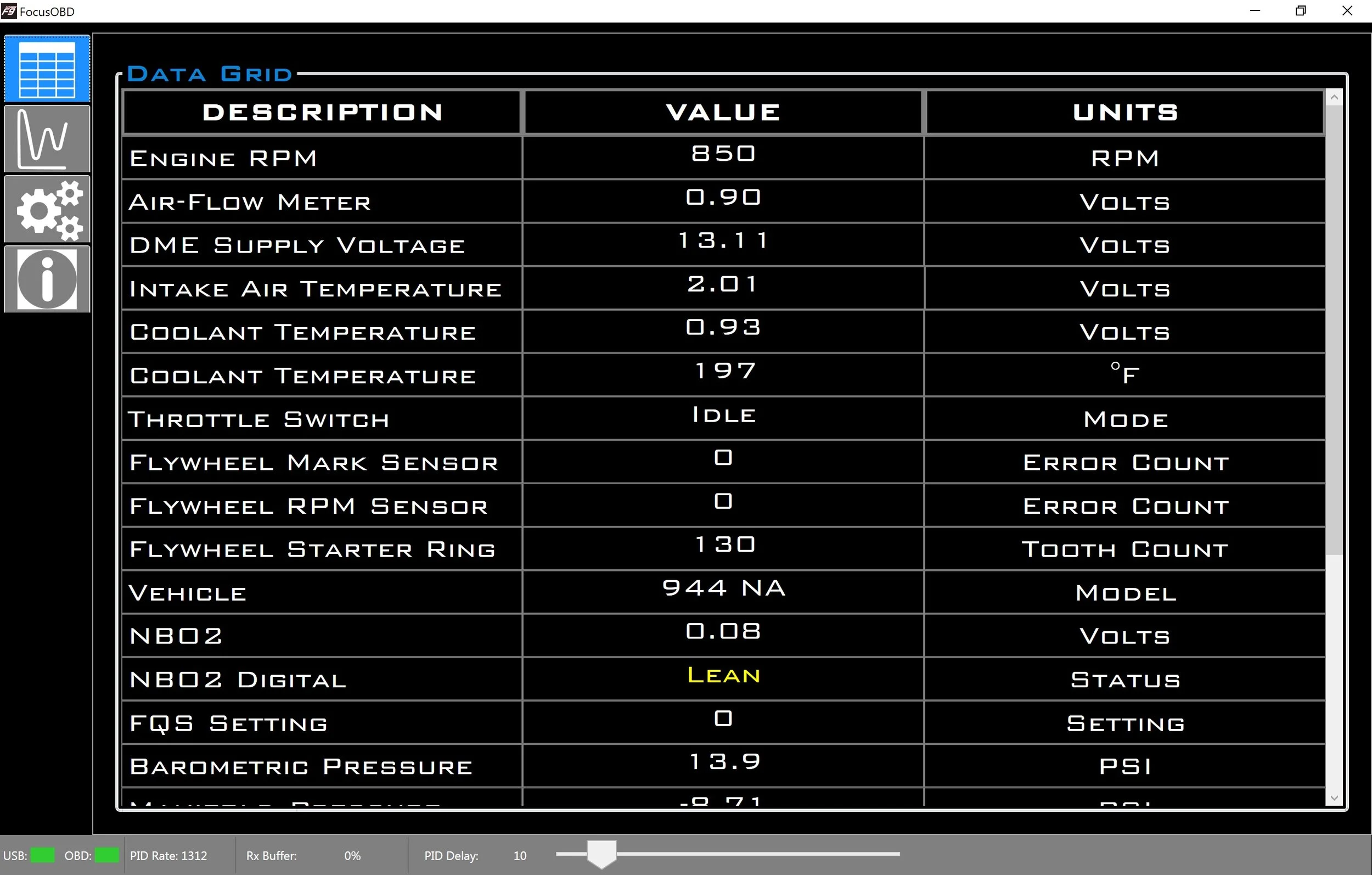

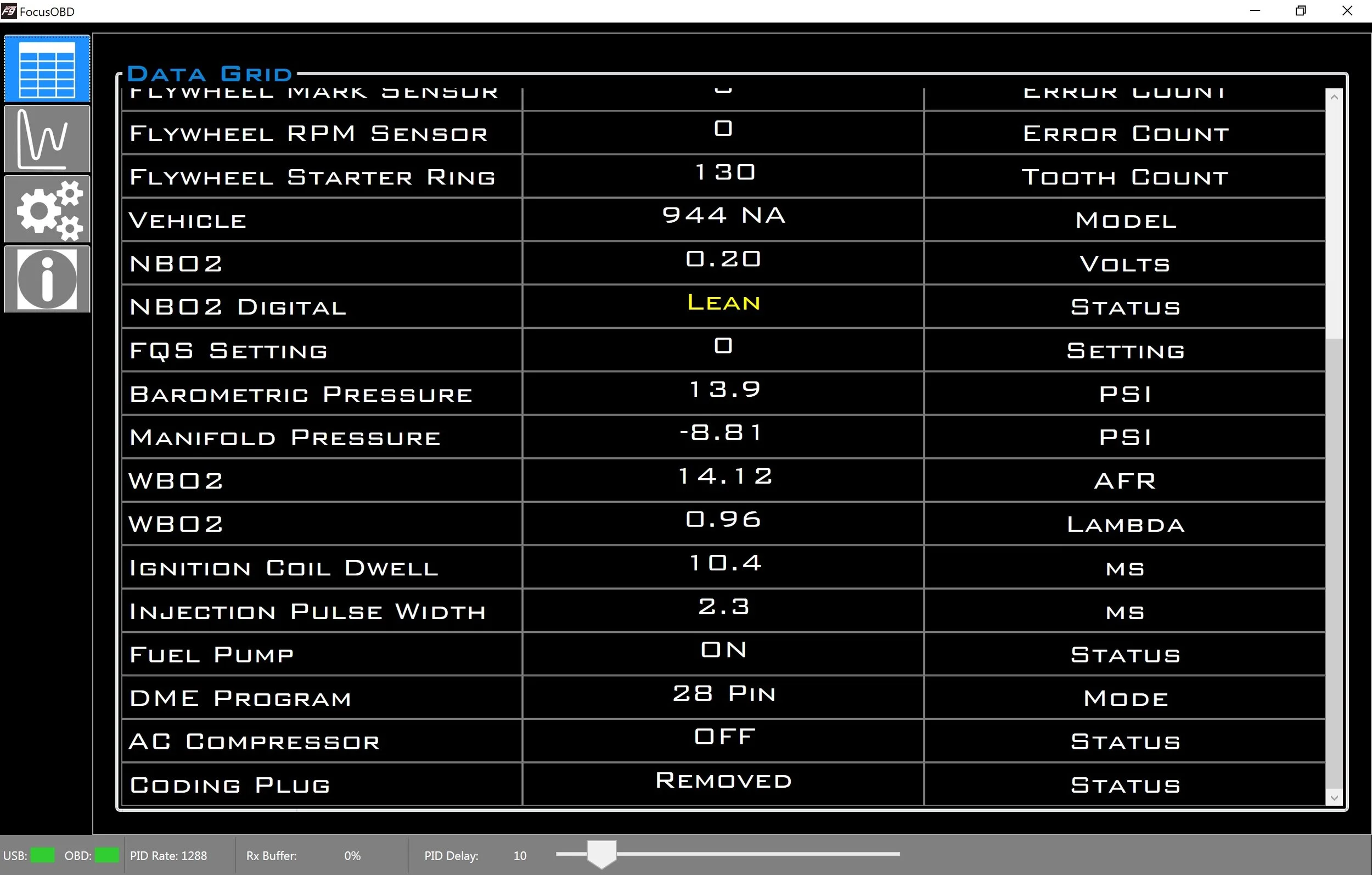

Current Features (FocusOBD v0.23.234)

• Data Logging

• Flywheel Sensor Diagnostics

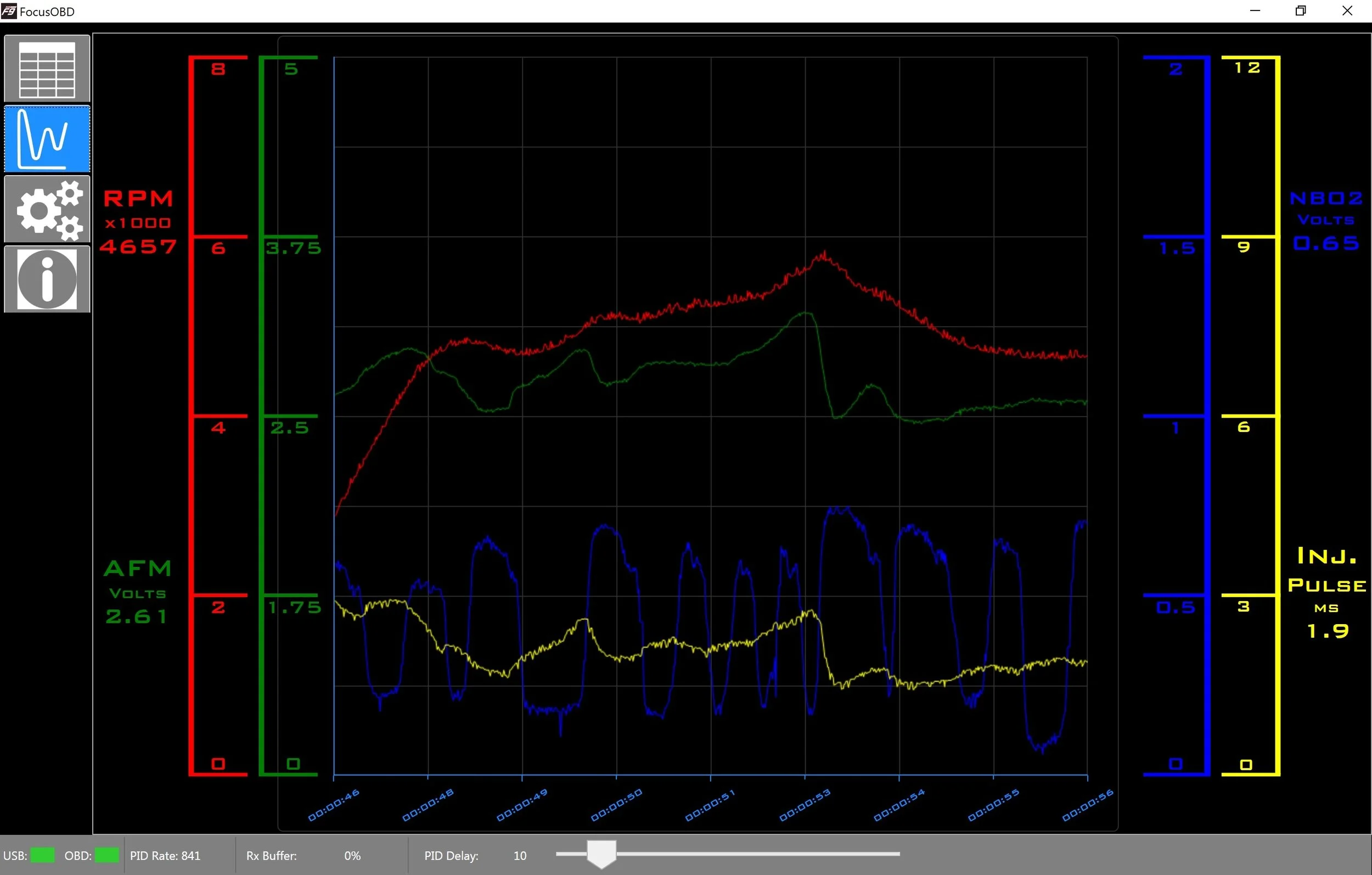

• Sensor Graphing

• Airflow Meter/MAF (Volts)

• Airflow (Density)

• Airflow (Volume)

• Fuel Pressure (AUTEX 100psi)

• Engine RPM

• Engine Coolant Temperature (Degrees C or F)

• Intake Air Temperature (Degrees C or F)

• NBO2 (Volts)

• NBO2 (Digital)

• FQS Setting (Position 0 to 7)

• Throttle Switch (Idle, Off-Idle, Full-Load)

• Battery Voltage

• Barometric Air Pressure Sensor (BAP)

• Ignition Coil Dwell

• Injector Pulse Width

• WBO2 (AFR)

• WBO2 (Lambda)

• MAP Absolute Pressure (PSI, Bar or Pa)

• MAP

• Idle Control Valve (Position %)

• 24/28 Pin Chip Mode

• Altitude Switch (<1000m, >1000M, Coding Plug)

• AC Compressor (Status)

• Fuel-Pump Activation (Status)

• Coding Plug (Status)

• DME Reset (Count)

• Ethanol “Flex-Fuel” Sensor

• Virtual Gauges

Upcoming “Plus” Features (Via Software Update)

• Fast-Charging Ignition Coil Support

• Solid-State Ignition support (Wasted-Spark)

• Bluetooth Connectivity

• GPIO Extender (Fuel-Level, Speedometer, … )

• Remote Display Support

Important Notes:

*You must send your SPORT DME to F9T in order to have the OBD+ Module installed.

*The SPORT DME is not included with the OBD+ Module and must be purchased separately.

* WB02 currently supports AEM, Autometer and Innovate. Please email support@ftech9.com if you require support for any other WBO2 controller.
